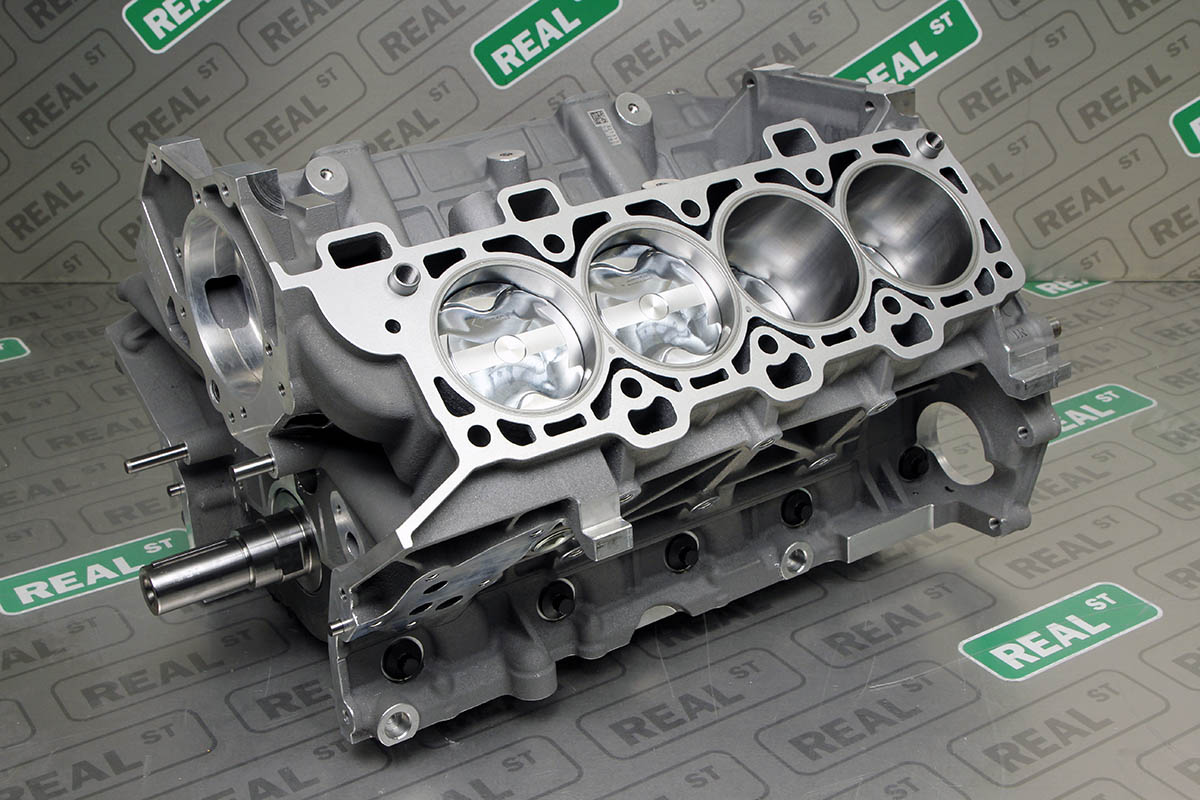

FFRE Stage 3 Short Block Boss Crank I-Beam Rods 3.630" 11.0:1 Pistons Mustang GT 11-23 5.0L Coyote

FFRE Stage 3 Short Block Boss Crank I-Beam Rods 3.630" 11.0:1 Pistons Mustang GT 11-23 5.0L Coyote

Regular price $12,299.00 USD
Regular price $12,500.00 USD Sale price $12,299.00 USD
Sale Sold out

This an oversize item that will require freight shipping.



FFRE Stage 3 Sleeved Coyote Gen 3 Short Block ARP Main Studs Boss Crank Manley I-Beam Rods Manley Extreme Duty Dome Pistons 3.630" Bore 11.0:1 for Ford Mustang GT 2011-2023 5.0L Coyote


FFRE Stage 3 Short Block

  • New Gen 3 Coyote Core Block
  • High Compression (11.0:1)
  • Inspect block, deburr, pre-wash, bore for sleeves, hone for sleeve install, measure flange depth and diameter, deck block, wash sleeves and block for install, install sleeves, seat sleeves, bore and hone with plate
  • FFRE Coyote Sleeves
  • O-ring Coyote Block
  • Line hone mains with ARP studs, wash block for assembly, check crankshaft for straightness, balance rotating assembly, pin fit rods and pistons, check rod housing bore, check main and rod bearing clearances, file fit rings, assemble short block.
  • Ford Performance Boss Crankshaft 3.650"
  • Mallory for crankshaft balancing
  • Manley 4340 Pro Series I beam connecting rods 5.933" with 7/16 ARP2000 rod bolts
  • Manley Extreme Duty Dome 2618 Pistons 3.630" Bore with Direct Injection dimple
  • Total Seal piston rings AP top, napier second 1.2 , 1.2 , 3.0mm
  • Wrist Pins 9310 Material .866 X 2.500 x .210 wall
  • ARP main studs
  • King main and rod bearings
  • FFRE Coyote oil squirter block offs
  • New block kit (timing cover dowels, rear seal dowels, chain guide dowels, oil galley freeze plugs)

Specifications

More Information
Note For use with all Coyote heads
Shipping Weight (Dimensional) 300.000000
Clearance Sale No
Availability Call
Part Type Engine Short Blocks
Make Ford
Model Mustang GT 11-14 S197, Mustang GT 15-17 S550, Mustang GT 18-23 S550
Engine 5.0L Coyote Gen 1, 5.0L Coyote Gen 2, 5.0L Coyote Gen 3
Rod Length 5.933" / 150.7mm
Rod Length Oversize Standard Length
Bore Diameter 92.2mm
Stroke 92.7mm (Standard Stroke)
Compression Ratio 11.0:1
Compression Ratio Range 10.0:1 - 11.0:1, 11.0:1 - 12.0:1
Pin Size 0.866" / 22mm
Face Type Dome
Crank Material Forged Steel
Brand Fast Forward Racing Engines
Rod Material Forged Steel
Rod Bolt 7/16" ARP 2000
Piston Material 2618
Beam Type I-Beam
Carb Legal No
Wrist Pin Dimensions .866" X 2.500" x .200"
Pin Material 9310 Steel
Shipping Label Freight
