MCR 2015-2026 Ford F-150 Triple Walbro 285 Fuel System

The MCR Triple Pump Fuel System is a complete return-style fuel system designed for high-horsepower 2015-2026 Ford F-150 5.0L Coyote applications.

Featuring three Walbro/TI Automotive F90000285 high-flow fuel pumps, a billet triple-pump module, engineered fuel-control bucket, pre-made fuel lines, fuel pressure regulator, fuel filter, and wiring controller, this system provides a complete fuel solution for serious boosted and E85 F-150 builds.

The engineered fuel bucket helps control fuel slosh and maintain consistent fuel delivery during hard acceleration, cornering, and low fuel levels.

Triple Walbro 285 Fuel Pumps

The system includes three Walbro/TI Automotive F90000285 fuel pumps designed for high-performance and forced-induction applications.

• Three Walbro/TI Automotive F90000285 fuel pumps
• Approximately 470 LPH per pump at 40 PSI
• E85 compatible
• Designed for high-performance forced-induction applications
• High-flow 39mm pump design
• Excellent fuel flow at elevated fuel pressures

Complete Return-Style Fuel System

The MCR Triple Pump Fuel System combines the major components needed for a high-flow return-style F-150 fuel system into one package.

Instead of sourcing a fuel hat, pumps, lines, regulator, filter, wiring, and fittings individually, the MCR system provides a complete package designed specifically around the F-150 platform.

Billet Triple Pump Module

The fuel pump module features:

• Billet aluminum top hat
• Triple Walbro 285 fuel pump configuration
• -10AN feed
• -8AN return
• M5 stainless bulkhead wiring studs
• Fits the OEM fuel-module retaining ring
• Retains the OEM fuel-level sender
• Billet center section
• DW orange anodized hardware

Engineered Fuel-Control Bucket

The integrated fuel-control bucket is designed to help maintain consistent fuel supply during hard acceleration and cornering.

Benefits include:

• Improved fuel control during hard launches
• Helps reduce the risk of fuel starvation
• Retains the OEM fuel-level sender
• Proven operation below 1/8 tank
• Designed for high-horsepower street and race applications

This makes the system an excellent option for drag racing, roll racing, street/strip, and other high-performance F-150 applications.

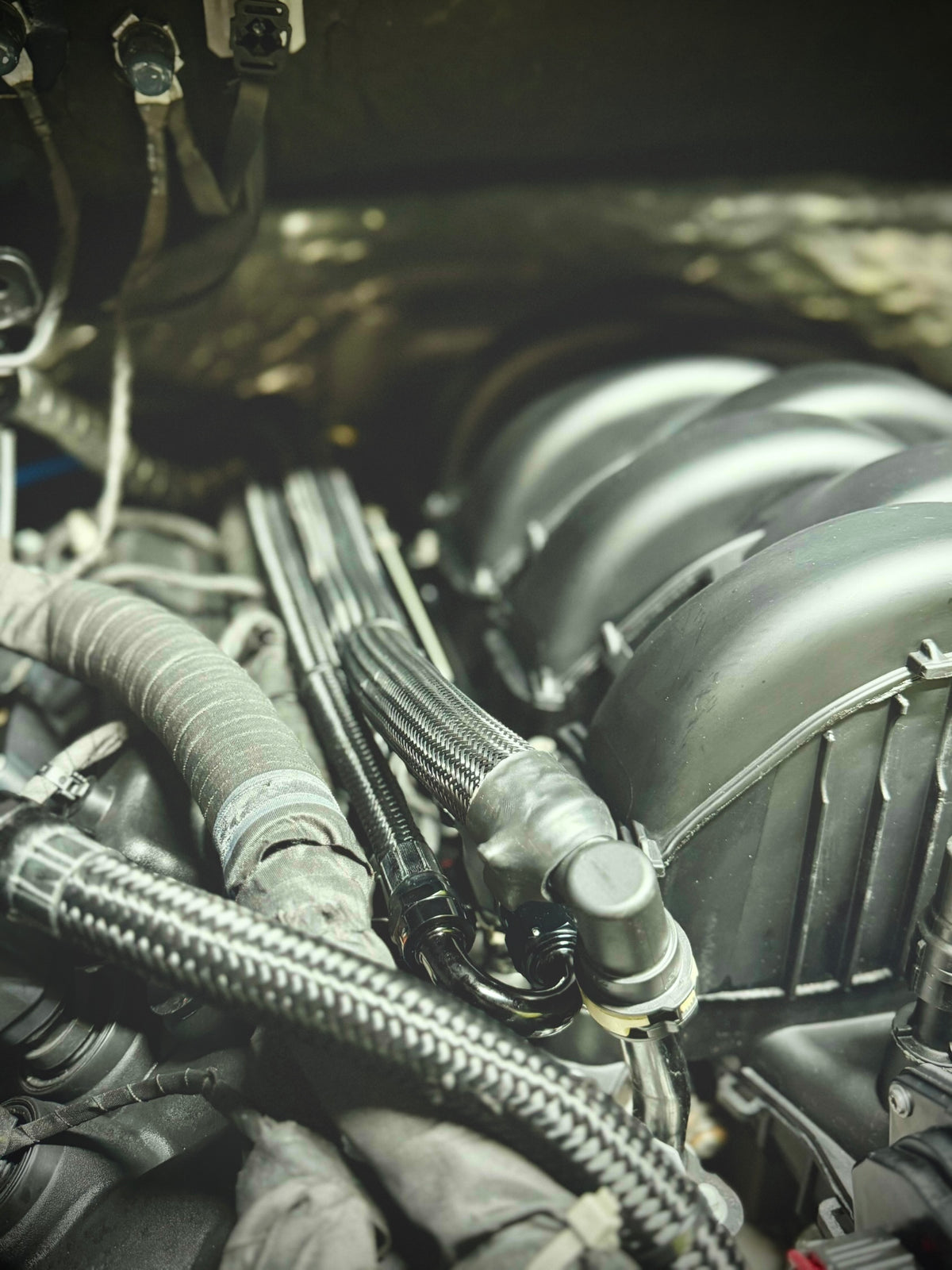

Pre-Made Return-Style Fuel Line Kit

The system includes a pre-made return-style plumbing kit to simplify installation.

Included:

• Pre-made and crimped fuel lines
• -10AN feed line
• -8AN return line

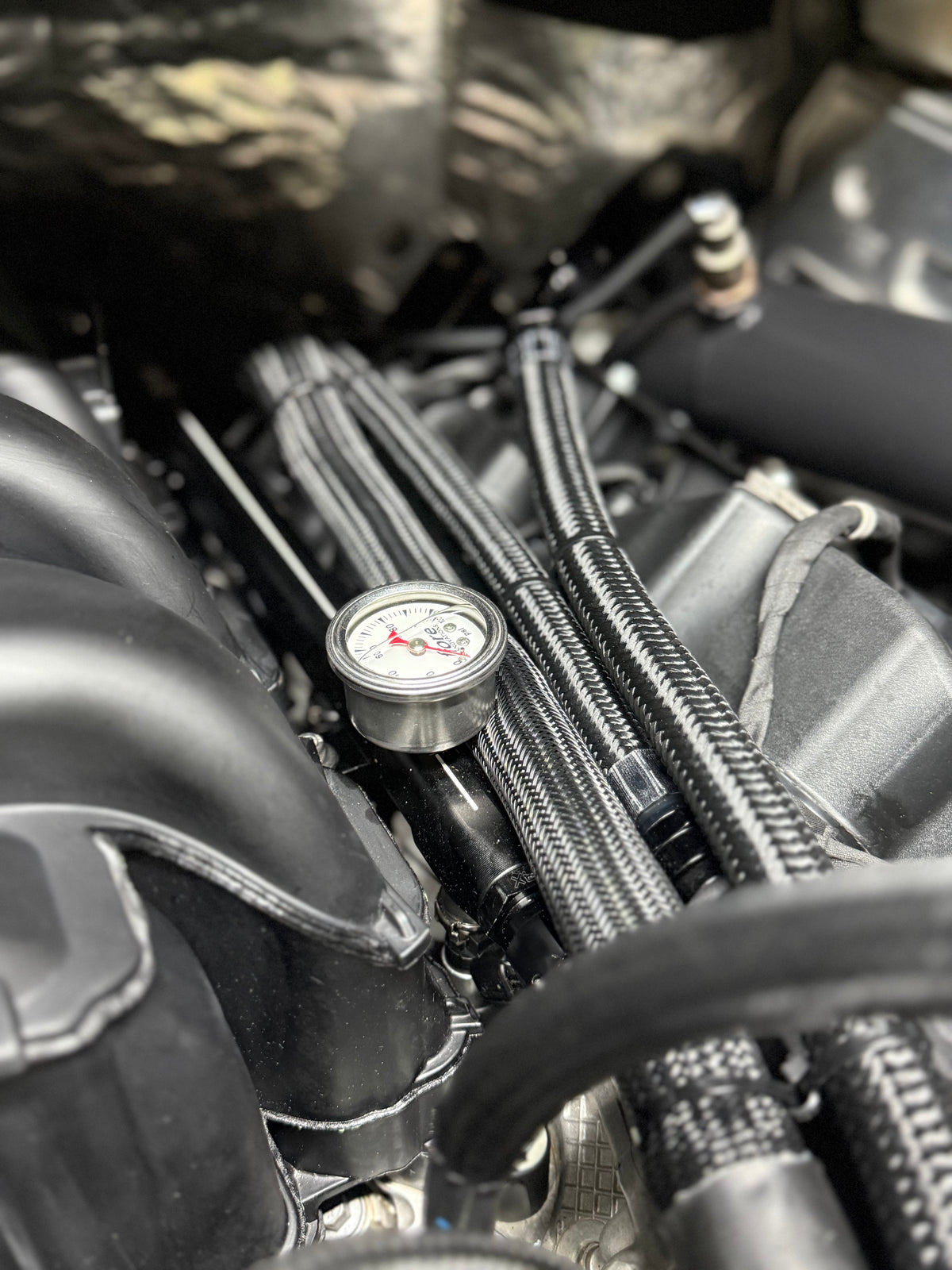

• Fuel pressure regulator
• Fuel filter
• Required fuel-line fittings

The pre-made lines eliminate the need to measure, cut, and assemble the complete fuel plumbing system from scratch.

Wiring & Pump Control

The system includes the required wiring/controller setup for the triple-pump configuration.

This allows the fuel pumps to be properly controlled while providing the electrical capacity required for a high-output triple-pump fuel system.

Built for High-Horsepower F-150s

The MCR Triple Pump Fuel System is designed for serious high-horsepower 5.0L Coyote combinations.

Ideal for:

• Turbocharged F-150s
• Twin-turbo F-150s
• Supercharged F-150s
• E85 applications
• High-horsepower street trucks
• Drag racing
• Roll racing
• Street/strip builds
• Dedicated race applications

Actual horsepower capability will vary depending on fuel type, base fuel pressure, boost pressure, injector sizing, electrical system voltage, engine combination, and other vehicle-specific factors.

Vehicle Fitment

2015-2026 Ford F-150 5.0L Coyote

Please contact MCR before ordering if you have questions regarding your specific year, fuel type, or vehicle configuration.

Important

Professional installation is recommended.

Always verify proper wiring, fuel pressure, regulator operation, and inspect all fuel connections for leaks before operating the vehicle.

Fuel-system capacity will vary depending on fuel type, fuel pressure, boost pressure, injector sizing, electrical voltage, and overall vehicle combination.

Installation Instructions

2015-2023_Ford_F-150_X3_Module_Install_Instructions.pdf
